Details

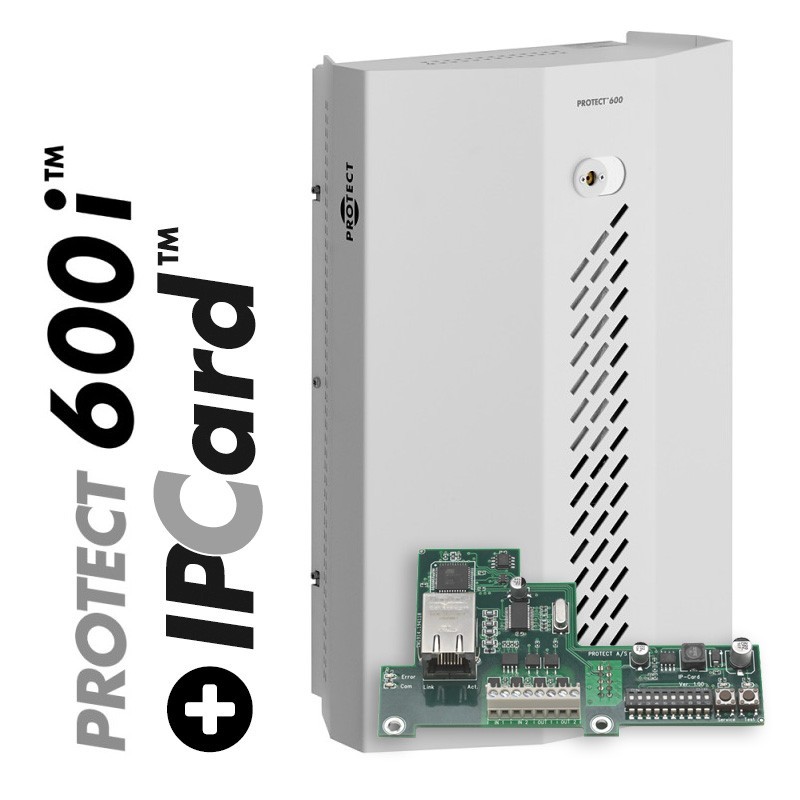

Model 600i IP is a classic in security fog protection and is our biggest seller.
It covers most offices and shops and is also used in smaller stocks and private homes!
600i IP is close to being our professional, all-round fog cannon.
Features:
• Discharges 700 m3 of fog at full speed in 60 seconds
• Turbo function to discharge 600 m3 in only 30 seconds
• Flexible adjustment between 290 and 700 m3 to exactly fit the size of the room
• Pulse function for up to 9 min. (effective maintenance of the fog)
• Compatible with any alarm system
• Compatible with IntelliBox
• Data log memory possible with IntelliSuite
• 100 % silent in standby mode
• Prepared for 4 different angled nozzles and nozzle extension piece
Specifications
Premises to be protected
Private house, Convenience store, Pawn shop, Jewellery store, ATM, Petrol station
Fog generation settings
7
Total capacity (full fluid container)
4 800 m³
Fog fluid
1,1 l. container
Electronic fluid measurement
Yes
Mains connection
230V, 50Hz
Number of 60-sec. shots in one container
7
Pulse function
Yes
Heating time from cold
15 min.
Power consumption during heating
1 050 W
Standby consumption after heating up (on average)
60 W
Standby consumption when heat is disabled
5 – 10 W
Re-heating time after fog discharge
0 – 5 min.
Operating temperature (min./max.)
5 – 80 °C
Input
5 signals
Output
3 signals
Signals/indicators
Optical, audible and electrical
Signals setting
Dipswitches
Power backup
2 x 12V, 1.2 Ah batteries
Backup time after power failure
Up to 3 hours
Battery charging & testing
Yes
Status indicator on PCB
Yes
External status indicator on casing
Yes
Anti-sabotage, impact-resistant steel casing
Yes
Length
475 mm
Width
332 mm
Height
154 mm
Weight
12.6 kg
Reviews
No Topic!
DOCUMENTATION
Only the latest documents can be downloaded. Therefore, there may be a discrepancy between already printed and downloaded materials.
To download, please click on the name of the document you want to download.
• Technical datasheet (PDF)
• Certificate of Conformity with EN 50131-8 standard (PDF)
• VSO approval certificate (PDF)
• Declaration of Conformity (PDF)
• DTI Declaration of chemical analysis & assessment (PDF)
• PROTECT XTRA+ Fog fluid Safety Data Sheet (English PDF)
• PROTECT XTRA+ Fog fluid Safety Data Sheet (Bulgarian PDF)
• PROTECT XTRA+ Fog fluid Safety Data Sheet (Croatian PDF)
• PROTECT XTRA+ Fog fluid Safety Data Sheet (Serbian PDF)
• PROTECT XTRA+ Fog fluid Safety Data Sheet (Slovenian PDF)
