Details

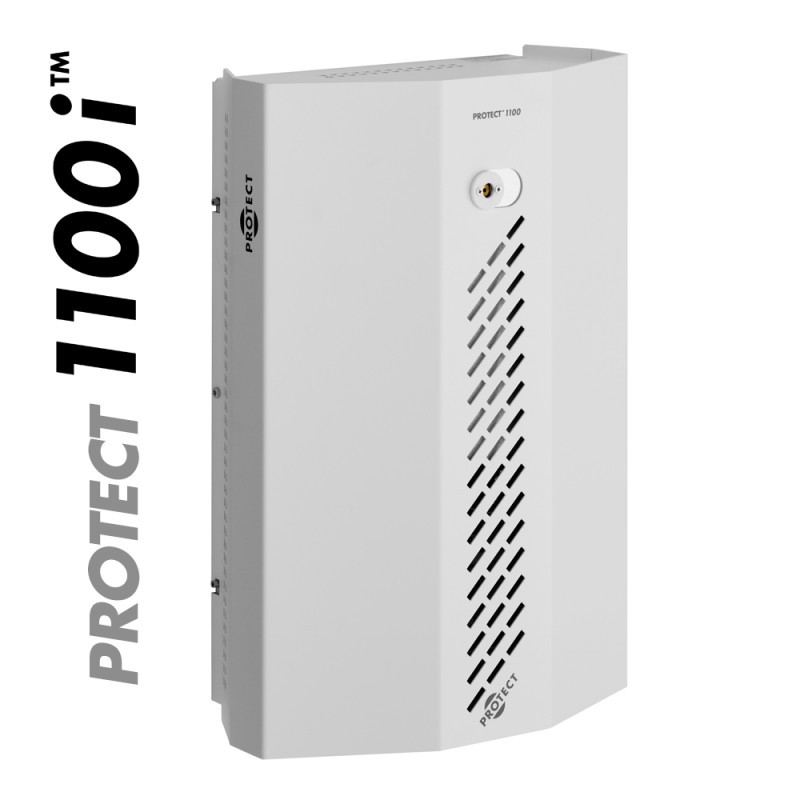

Model 1100i is extremely powerful and fills the room very quickly.
It’s designed for protection of large spaces: office environments, large shops and storage facilities. Or even large private garages.
Features:
• Discharges 1300 m3 of fog at full speed in 60 seconds
• Flexible adjustment between 500 and 1300 m3 to exactly fit the size of the room
• Pulse function for 4 min. (effective maintenance of the fog)
• Compatible with IPCard, MultiCard and IntelliBox
• Data log memory possible with IntelliSuite
• Built-in daily, automatic battery test
• Integration with all types of alarm systems
• 100 % silent in standby mode

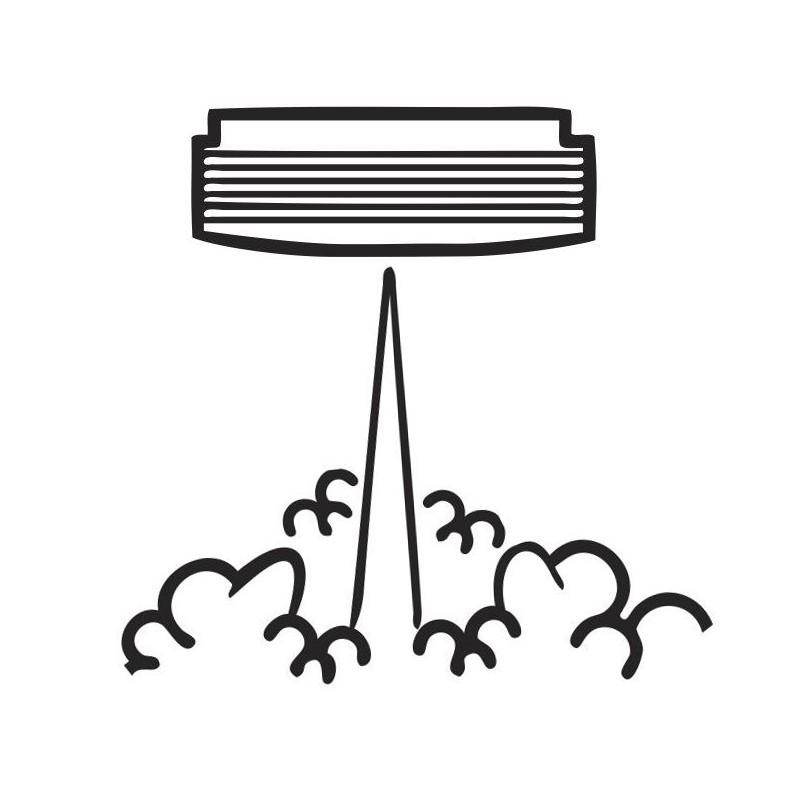

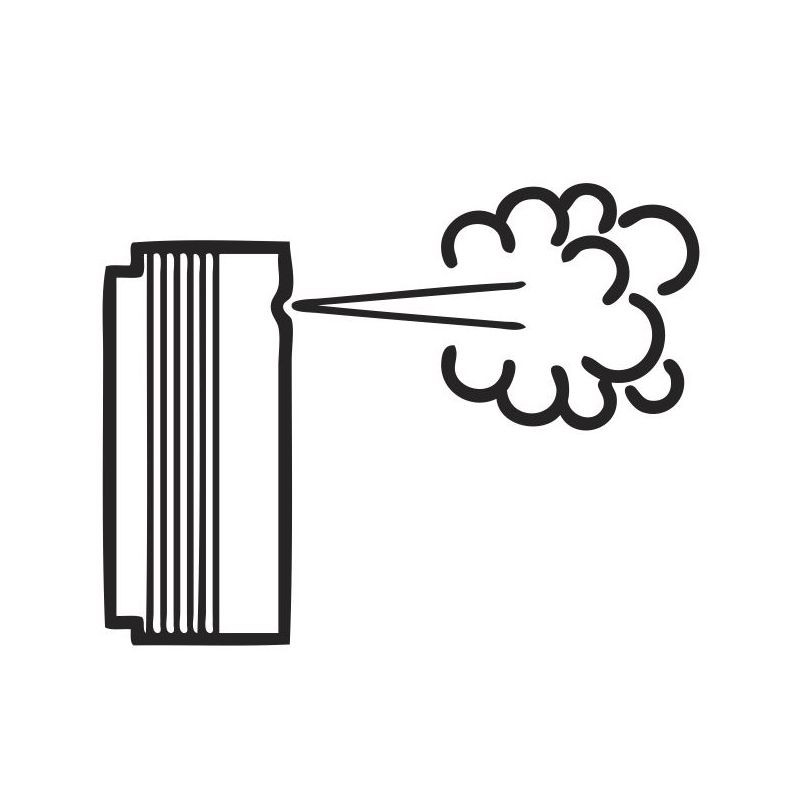

• Prepared for 4 different angled nozzles and nozzle extension piece
Similar products
Specifications
Premises to be protected
Office, Convenience store, Warehouse, Petrol station, Pawn shop, Jewellery store
Fog generation settings
5
Total capacity (full fluid container)
4 800 m³
Fog fluid
1,1 l. container
Electronic fluid measurement
Yes
Mains connection
230V, 50Hz
Number of 60-sec. shots in one container
4
Pulse function
Yes
Heating time from cold
25 min.
Power consumption during heating
1 350 W
Standby consumption after heating up (on average)
70 W
Standby consumption when heat is disabled
5 – 10 W
Re-heating time after fog discharge
0 – 8 min.
Operating temperature (min./max.)
5 – 80 °C
Input
5 signals
Output
3 signals
Signals/indicators
Optical, audible and electrical
Signals setting
Dipswitches
Power backup
2 x 12V, 1.2 Ah batteries
Backup time after power failure
Up to 3 hours
Battery charging & testing
Yes
Status indicator on PCB
Yes
External status indicator on casing
Yes
Anti-sabotage, impact-resistant steel casing
Yes
Length
475 mm
Width
332 mm
Height
174 mm
Weight
16 kg
